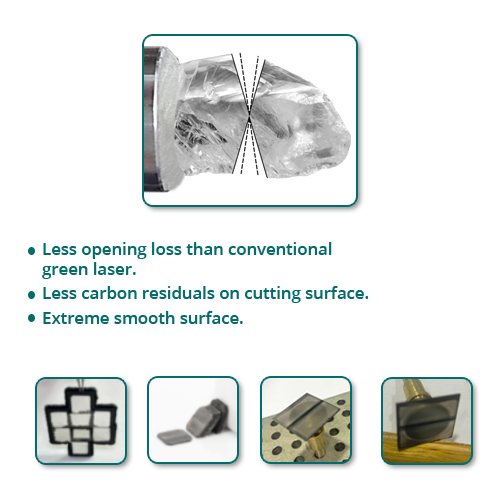

Multi Sign Cutting Machine
Product Description
| SALIENT FEATURES | |
| ► No Requirement of UV Glue. | |
| ► No more Diamond Detachment Problem during cutting Process. | |
| ► Multi Top Sawing in Single Sticking. | |
| ► Lower Investment, Greater Yield. | |
| LASER SYSTEM | |
| ► Laser | ► End Pumped Green |
| ► Central Emission Wavelength | ► 532nm |
| ► Transverse Mode | ► TEMoo |
| ► Q-Switched Output Power | ► Upto 19 WATT 9Khz |
| ► Pulse to Pulse Stability | ► (% rms) < 0.86% 9Khz |
| ► Beam Polarization | ► Linear |
| ► Beam Pointing Stability | ► 15 μ RAD |
| ► Pulse Repetition Rate | ► 1 to 20 Khz |
| ► Laser Class | ► IV |
| CNC SYSTEM | |
| ► Axis Travel | ► 130mm x 130mm x 70mm |
| ► Repeatability | ► Highly Accurate 5 Micron / 25 mm Bidirectional |
| ► Straightness & Flatness of Travel | ► 5 Micron / 25 mm |
| ► Accuracy | ► 2 micron |
| ► Drive | ► AC Servo 200 WATT Control Drive |
| COMPUTER SPECIFICATION | |
| ► Intel core i3 processor | |
| ► 4GB RAM, 1TB HHD, 450 WATT SMPS | |
| ► Higher Configuration | |
| ► 17″ LCD Screen | |
| MACHINE SPECIFICATION | |
| ► Power consumption | ► 1 Ø, 230 Volts AC, 12 Amps |
| ► Power Supply [ Diode Driver ] | ► 30 AMP - 30 Volts DC, High Stability Power Control |
| ► Cooling System | ► 1200 Watt Cooling Capacity, German Brand PUMP, Nickel Coated, Heat Exchanger,All SS Fittings, 0.1 Degree Temperature Control Range Power Consumption - 1 Ø, 230 Volts , 8 Amps |
| ► Optical Laser Power Control System | ► 0 to 20 Watt Output Power Control by Optical System, Maximum Beam Roundness, Highly Stable Beam Quality to prevent Diamond Damage |
| ► RF Q-Switch Driver | ► 27MHZ, 50Watt Output Power, Modulation Frequency Auto, Manual 1k to 25KHZ Frequency Range, Thermal cutoff Protection, FPS system |
| ► TEC LBO Controller | ► 0.1 Degree Control Capacity, 18 Degree to 45 Degree Temperature Range |
| DIMENSION MULTI SAW GREEN | |
| ► Length x Width x Height | ► 45" x 28" x 60" |
| ► Weight | ► 435 kg(Approx). |
