| SALIENT FEATURES |
| ► Available in Green Laser and IR Laser. |
| ► Symmetrical / Asymmetrical / Facet Cutting |

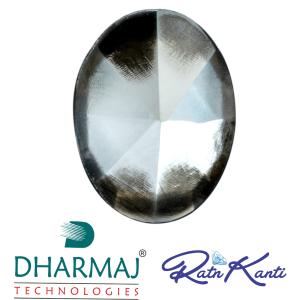

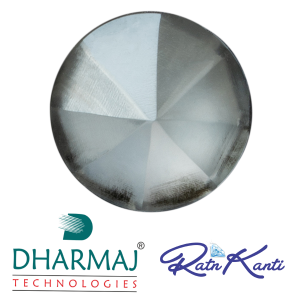

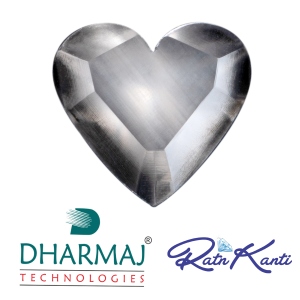

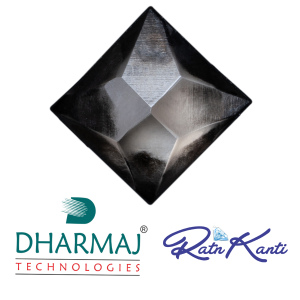

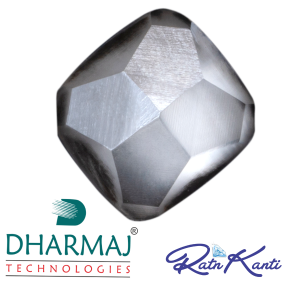

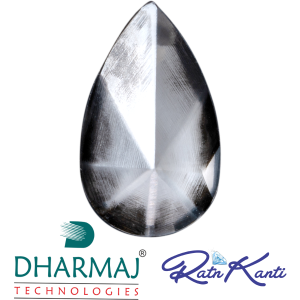

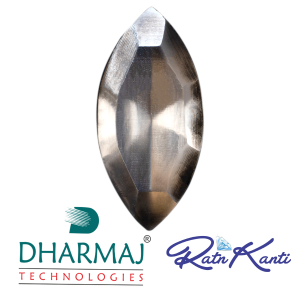

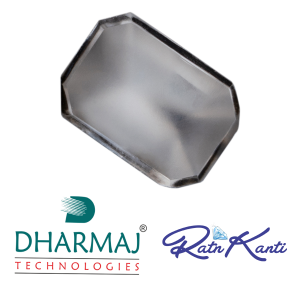

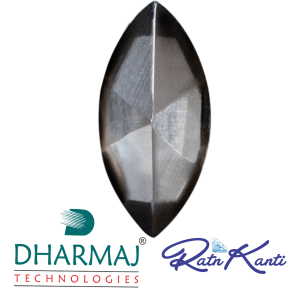

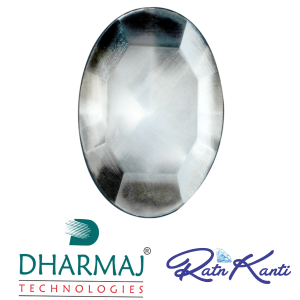

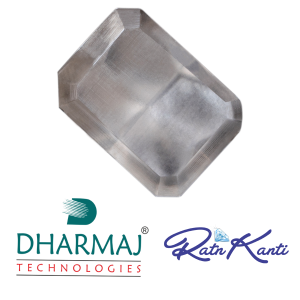

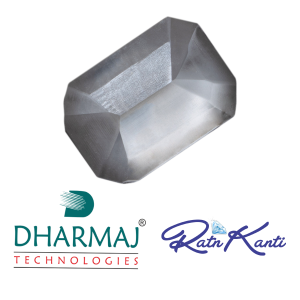

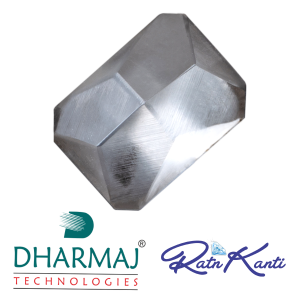

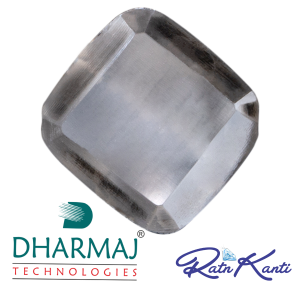

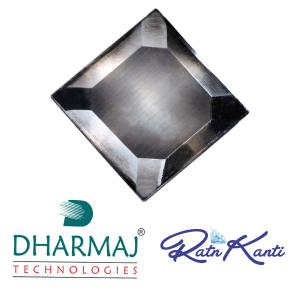

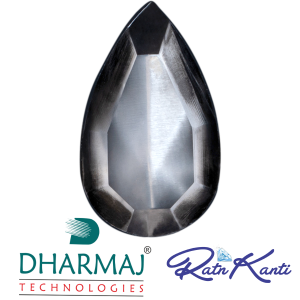

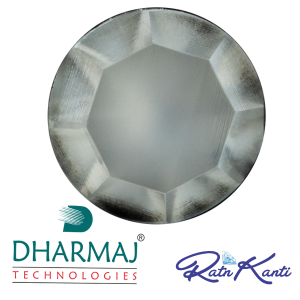

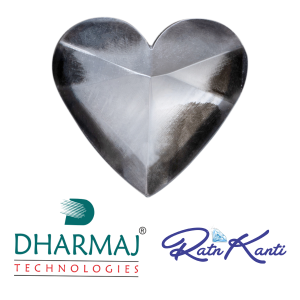

| ► Round as well as Fancy Shape features available. |
| ► Size from 0.5 cent polish to any big size Round and Fancy. |
| ► Fine and Precision facet cutting. |
| ► Single Sticking requires for all process. |
| ► 8 or 16 facet each side available. |
| ► Facet cutting parameters can be import through .obj file from Sarine Advisor 8.0 & Helium Carbon. |
| ► Least maintenance for XYZ motion System. |
| ► Fastest facet cutting ever in Laser System. |
| ► Negligible damage ratio in Diamond. |
| ► Robust and Vibration free body structure. |
| ► Optomech combo laser cutting technology specially developed for facet cutting. |
| LASER SYSTEM |
| ► Laser |
► DPSS (ND:YAG Diode Pumped) |
| ► Diode Module |
► Indigenous made Green Laser Head or Northrop Grumman |
| ► Central Emission Wavelength |
► 532nm |
| ► Transverse Mode |
► TEMºº |
| ► Q-Switched Output Power |
► Up to 19 Watt 9Khz |
| ► Pulse to Pulse Stability |
► (% rms)< 0.86% 9khz |
| ► Beam Polarization |
► Linear |
| ► Beam Pointing Stability |
► 15 µ Rad |
| ► Pulse Repetition Rate |
► 1 to 20 Khz |
| ► Laser Class |
► IV |
| MACHINE SPECIFICATION |
| ► Power Consumption |
► 1 Ø, 230 Volts AC, 12 Amps (HP) |
| ► Operating Temperature |
► 18 to 30 C |
| DIMENSION |
| ► Length x Width x Height |
► 43" x 28" x 67.5" |
| ► Weight |
► ~700 kg. |
