Fiber Laser Diamond 4P Machine
Product Description
| Optical Properties | |
| ► Laser Model & Type | ► MOPA & Q-Switched Fiber |
| ► Average Power | ► 15W |
| ► Pulse Energy | ► 1.5mJ |
| ► Frequency | ► 1-50Khz |
| ► Pulse Width Range | ► 200ns |
| ► M2 | ► <1.8 |
| ► Center Wavelength | ► 1064nm |
| ► Output Power Stability | ► <3% |
| ► Tunable Power Range | ► 0-100% |
| ► FWHM (nm) 3dB | ► <15nm |
| ► Polarization | ► Random |
| ► Anti-Reflection Protection | ► Yes |
| ► Beam Diameter (mm) | ► 6mm |
| ► Output Fiber Length | ► 1.5m |
| ► Supply Voltage | ► 24V |
| ► Power Consumption | ► <150W |
| Machine Properties | |
| ► Axis Travel | ► 130*130*70mm |
| ► Accuracy | ► 2 Micron |
| ► Repeatability | ► 5 Micron/25mm Bidirectional |
| ► Straightness & Flatness of Travel | ► 5 Micron/25mm |
| ► Drive | ► AC Servo |
| ► Power Consumption | ► 1 Ø, 230 Volts, 1.5 Amps |
| ► Operating Temperature | ► 0 - 30 C |
| ► Length * Width * Height Weight | ► 940mm x 635mm x 1397mm 300kg ~ |
| PC Specification | |
| ► Intel 4th Generation | |
| ► Dual Core Processor | |
| ► Higher Configuration | |
| ► 17″ LCD Screen | |
| Machine other features | |
| ► Calibration Free Software | |

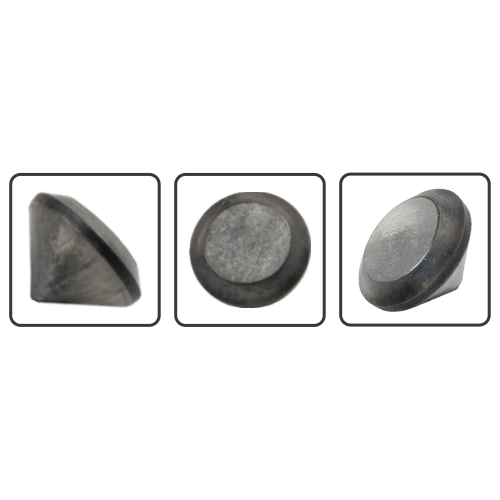

| ► Smart Cutting Parameters * For Process specific (Table, Crown, Girdle, Pavillion) Auto Power, Angle Frequency facility * Diameter wise Auto Cutting file & margin cutting facility |
|
| ► Smart Parameter facility for “HEIGHT STONES / PALCHA” type rough | |
| ► Servo motor used in fixture for Precise Positioning. | |
| ► Efficient CNC System thus Smooth Cutting. | |
| ► Direct Data Transfer. | |
| ► Diameter wise Automatic power adjustment. | |
| Upgraded Software Features | |
| ► Live Photo for current set stone. | |
| ► Live center position for maintaining accuracy. | |
| ► Hardware & Hasp lock in all functions for preventing your current setting data. | |
| ► Easy and Highly Accurate Calibration process for better Quality of shape for longer duration. | |
| ► All kind of Data importing Facility in one software (QR Code, LAN, Eagleye, etc.). | |
| ► Auto camera spot checking function. | |
| ► Fastest ever software for Quality Production. | |
| ► Percentage wise power increase/decrease facility in all process. | |
| ► Diameter wise smart margin facility. | |
| ► You can easily store cutting stone data with image and parameter according to Operator and Party wise. | |
| ► Automatic and Manual Excel file export facility available with CSV format. | |
| ► Double side table Sawing image can be save through Enter key use. | |
| ► Minimum 10 Days back-up Data available. | |
| ► In Machine ‘‘Girdle’’ and ‘‘Table’’ marking facility. | |
| Key Features | |
► Having “ ” save space up to 50% |
|
| ► Working with “” save up to 85% in Electricity bill |
|
| ► Though smallest “” is Robust and Vibration free |
|
| ► Ergonomically designed structure for Hassle free service | |
