Non Stop Green Laser
Product Description
| SALIENT FEATURES | |
| ► Single/Double side Pie Sawing with Banding in a single setting. | |
| ► Single/Double side Sawing with Multi side Banding facility. | |

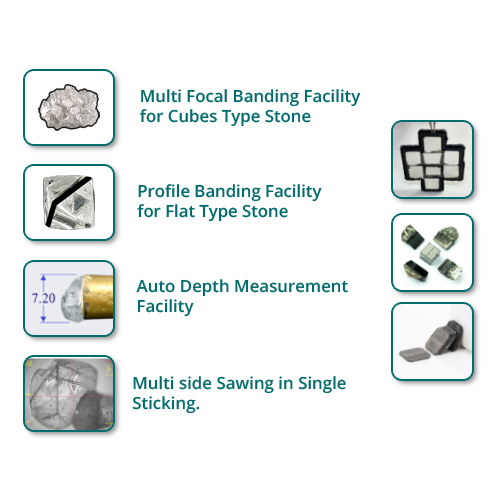

| ► Multi Focal Banding Facility for Cubes type stone. | |
| ► Profile Banding Facility for Flat type Stone. | |
| ► 0 to 20 WATT Output power control by optical system. | |
| ► Ideal Beam Roundness. | |
| ► Highly Stable Beam Quality to prevent Diamond Damage. | |
| LASER SYSTEM | |
| ► Laser | ► DPSS (ND:YAG) Green Laser |
| ► Diode Module | ► Northrop Grumman “ IKLWA ” Laser Head or "Indigenous make Green Laser Head. ” |
| ► Central Emission Wavelength | ► 532nm |
| ► Transverse Mode | ► TEMoo |
| ► Q-Switched Output Power | ► Upto 22 WATT at 9KHZ |
| ► Beam Polarization | ► Vertical / Linear |
| ► Repetition Rate | ► 6 to 20 KHZ |
| ► Pulse Width | ► FWHM<80ns |
| CNC SYSTEM - 1 | |
| ► Axis Travel | ► 130mm x 130mm x 70mm |
| ► Resolution | ► Highly Accurate and Long Lasting 23 Bit Resolution |
| ► Accuracy | ► 2 micron |
| ► Drive | ► AC Servo 200 WATT Control Drive |
| CNC SYSTEM - 2 [ Optional ] | |
| ► Axis Travel | ► 130mm x 130mm x 70mm |
| ► Resolution | ► Highly Accurate and Long Lasting 23 Bit Resolution |
| ► Accuracy | ► 2 micron |
| ► Drive | ► AC Servo 200 WATT Control Drive |
| COMPUTER SPECIFICATION | |
| ► Intel core i3 processor | |
| ► 4GB RAM, 1TB HHD, 450 WATT SMPS | |
| ► Higher Configuration | |
| ► 17″ LCD Screen | |
| MACHINE SPECIFICATION | |
| ► Main Supply | ► 230VAC - 10 AMP, 1 Phase |
| ► Power Supply [ Diode Driver ] | ► 30 AMP - 30 Volts DC, High Stability Power Control |
| ► Cooling System | ► 1200 Watt Cooling Capacity, German Brand PUMP, Nickel Coated, Heat Exchanger, All SS Fittings, 0.1 Degree Temperature Control Range |
| ► Optical Laser Power Control System | ► 0 to 20 Watt Output Power Control by Optical System, Maximum Beam Roundness, Highly Stable Beam Quality to prevent Diamond Damage |
| ► RF Q-Switch Driver | ► 27MHZ, 50Watt Output Power, Modulation Frequency Auto, Manual 1k to 25KHZ Frequency Range, Thermal cutoff Protection, FPS system |
| ► TEC LBO Controller | ► 0.1 Degree Control Capacity, 18 Degree to 45 Degree Temperature Range |
| DIMENSION | |
| ► Length x Width x Height | ► 2060mm" x 660mm" x 1400mm" |
| ► Weight | ► 1200 kg(Approx). |
